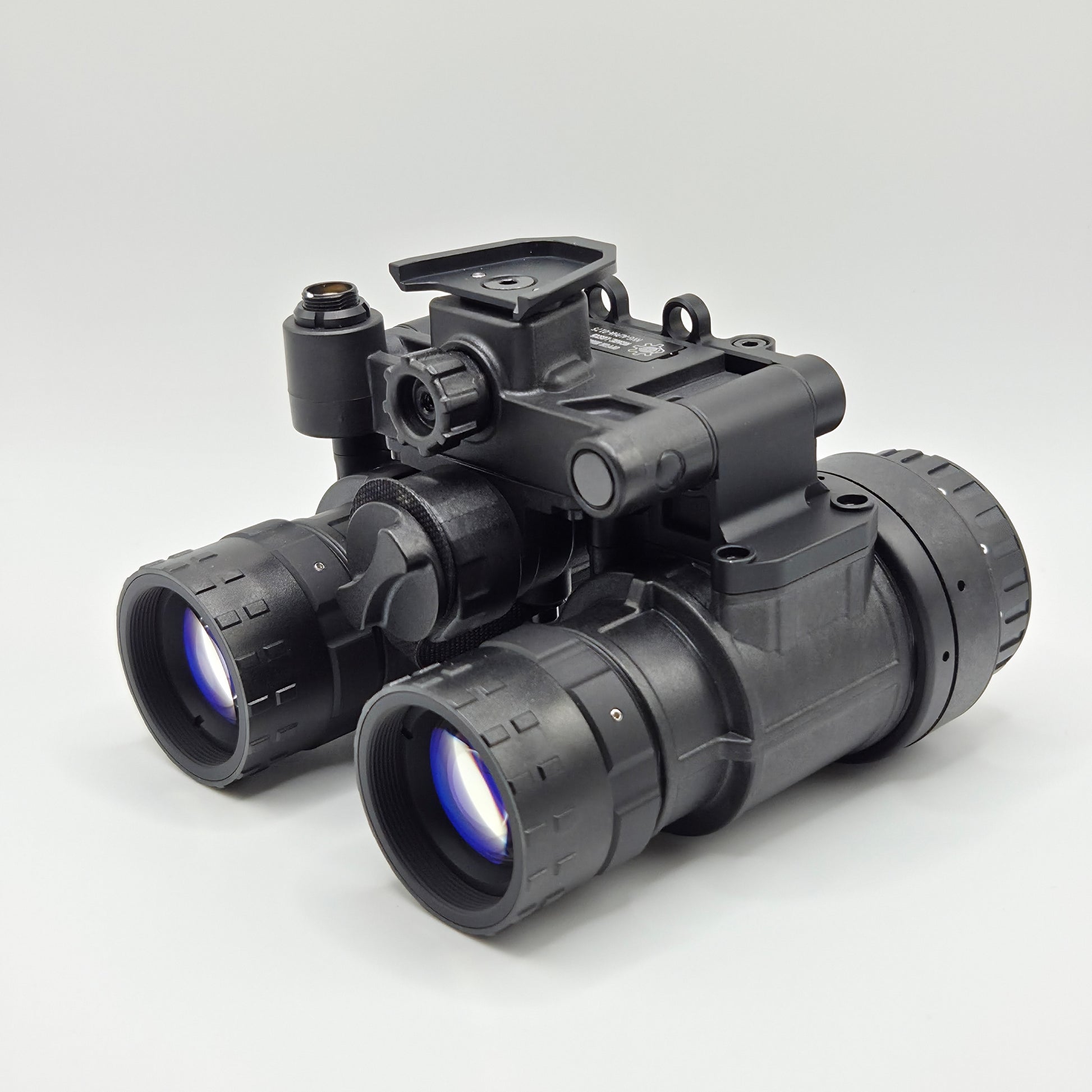

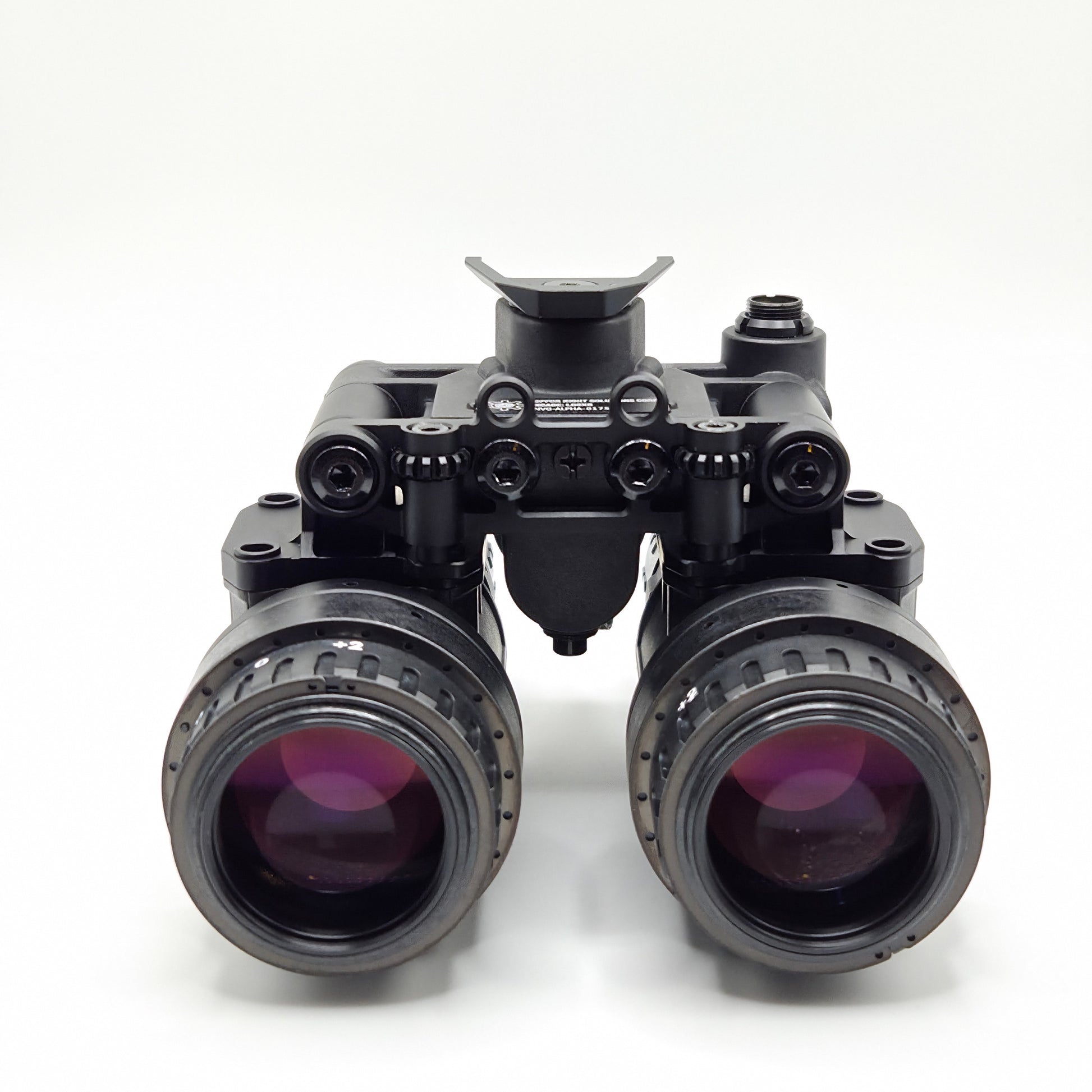

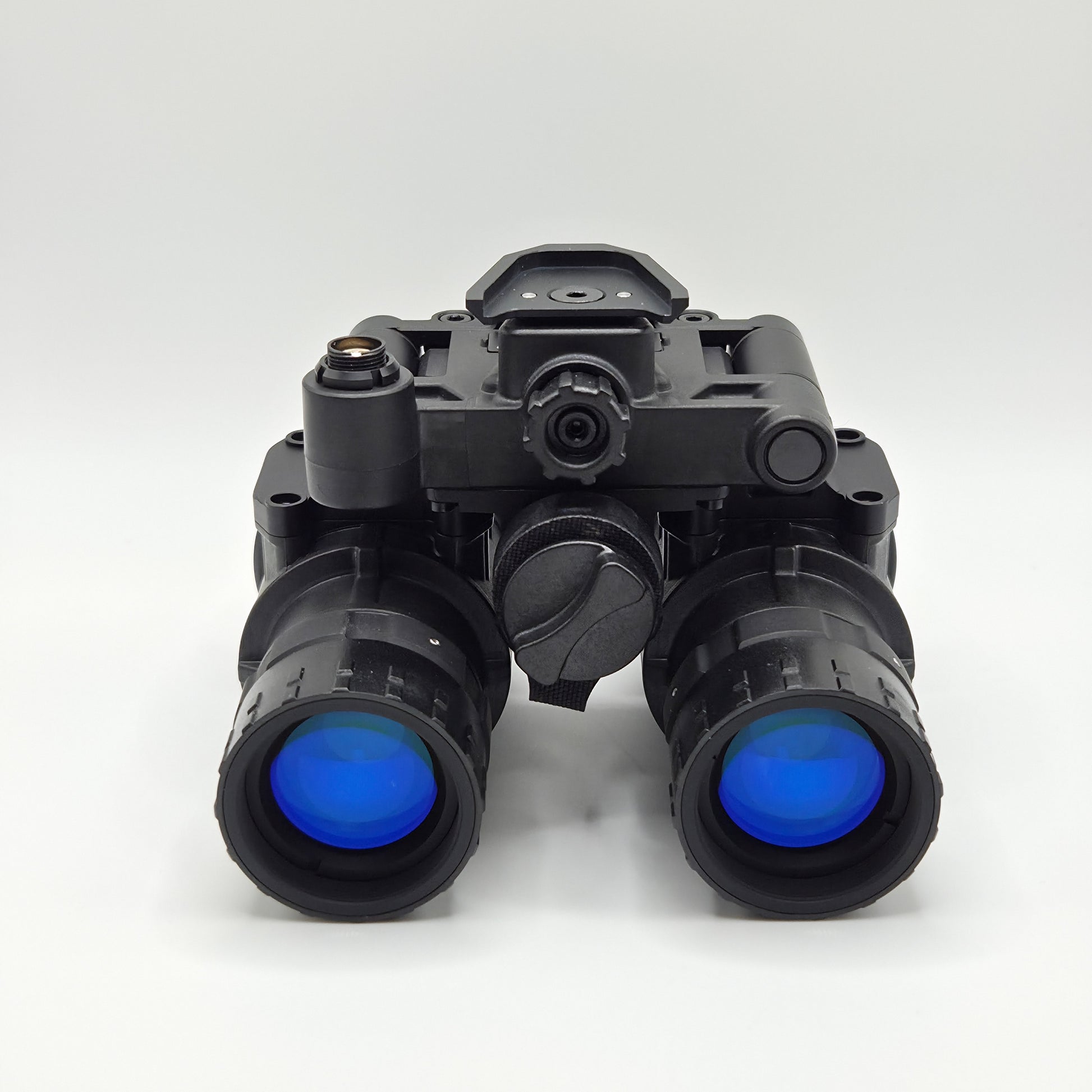

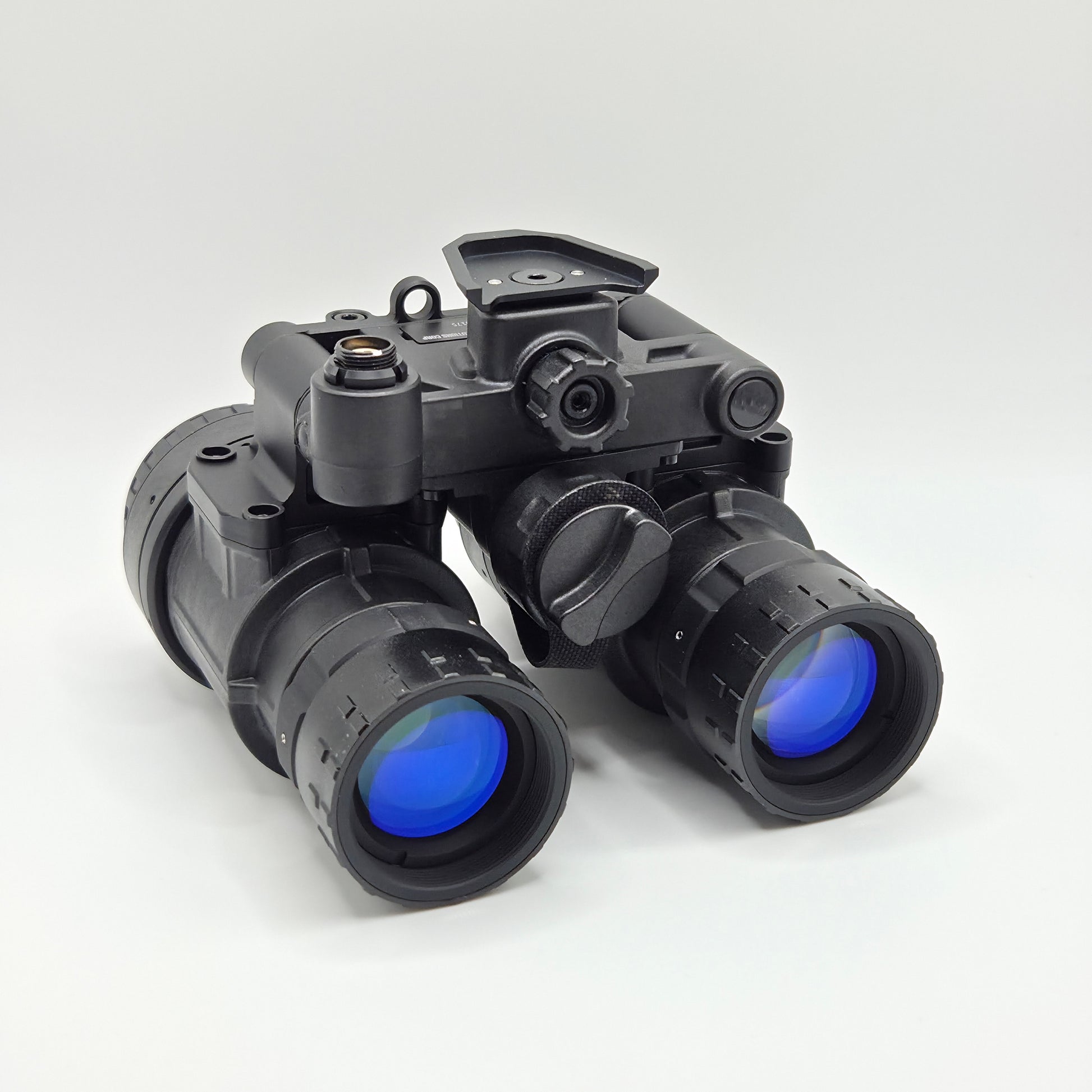

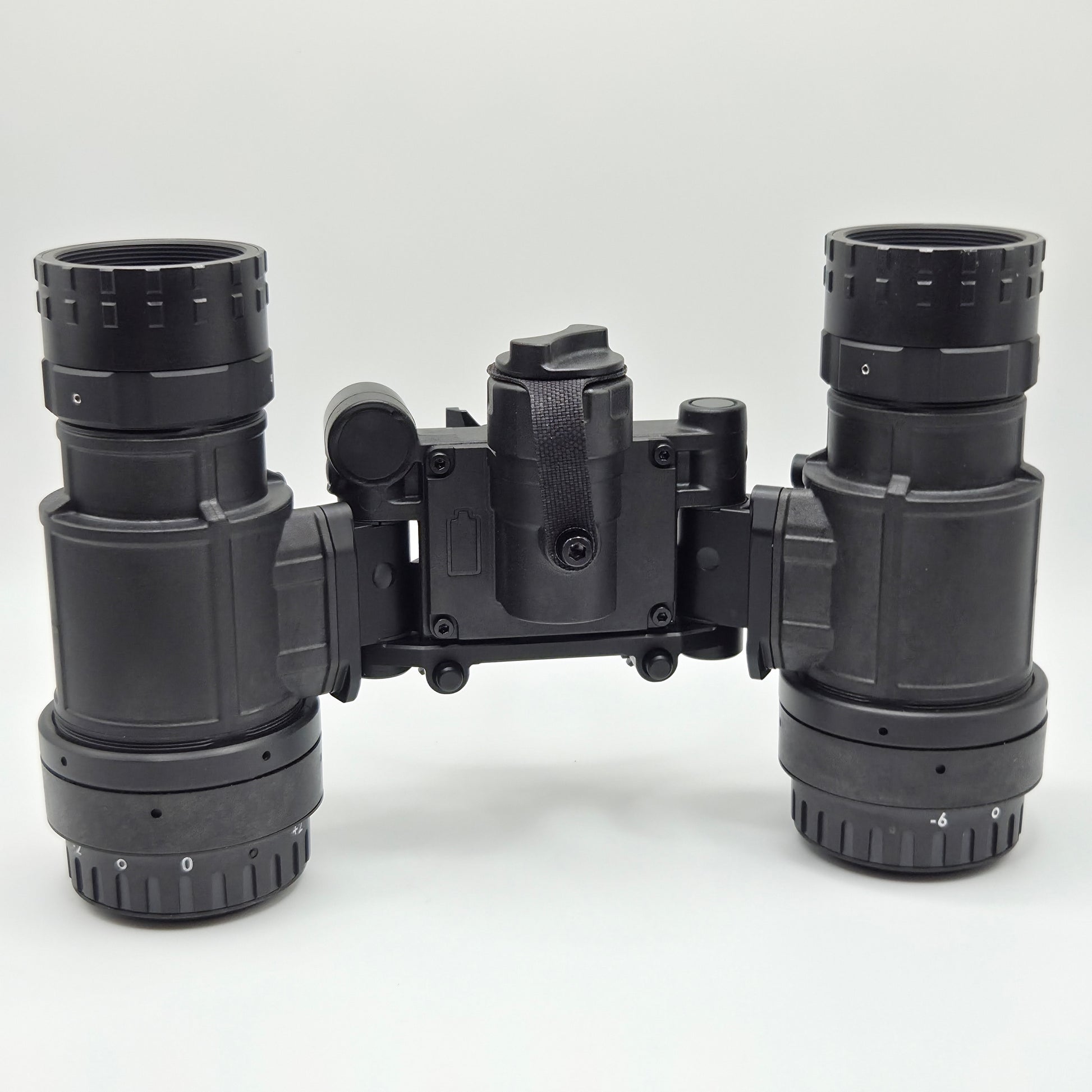

NVG-ALPHA

The NVG-ALPHA is a rugged, full-featured night vision binocular built with a blend of polymer and aluminum. Polymer components keep the system lightweight, while aluminum is strategically used in critical areas for enhanced durability.

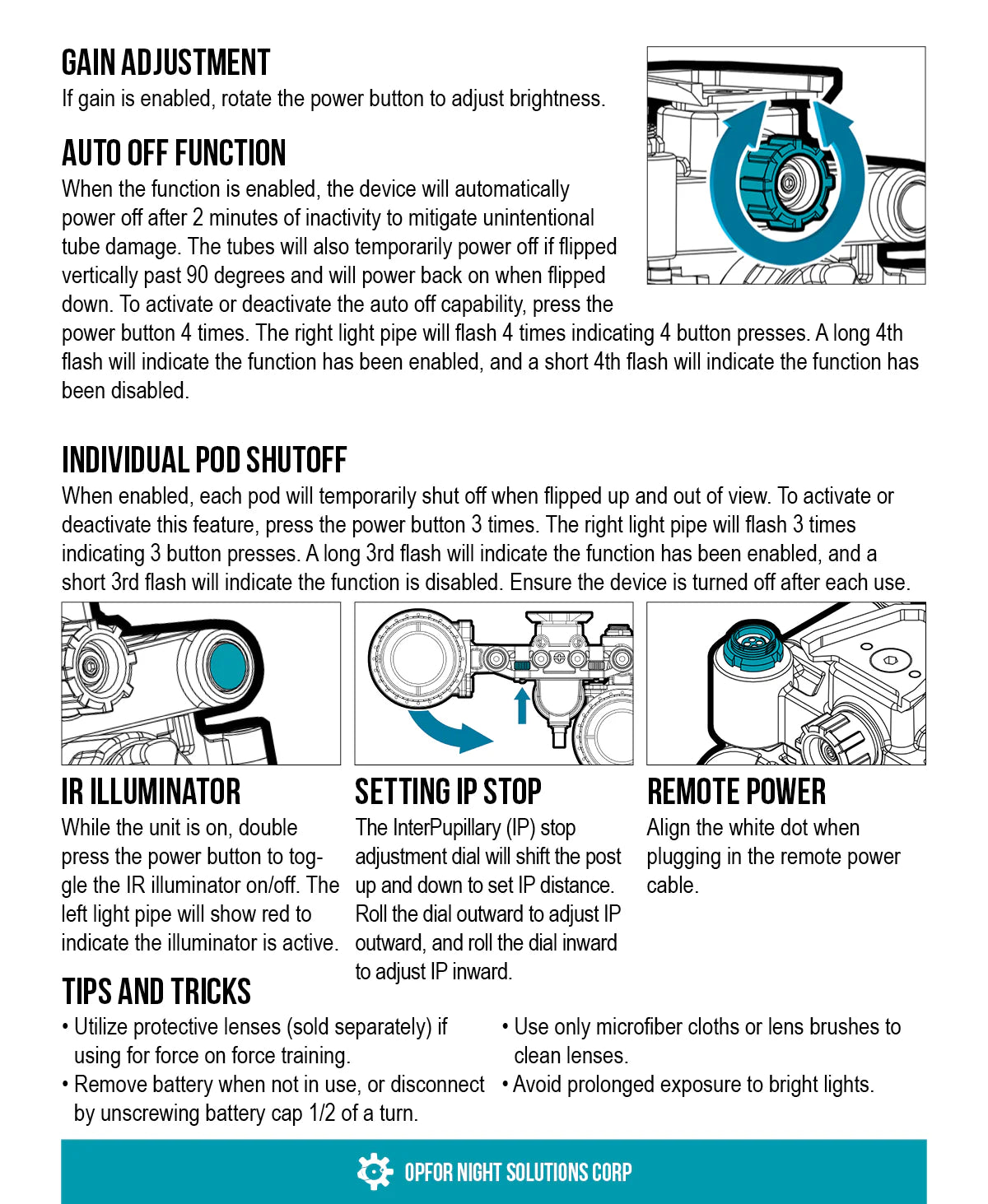

Designed with the end user in mind, the ALPHA features articulated pods that automatically shut off individually when rotated outward, helping to prevent splashback and protect your tubes from light exposure. A single, centrally located rotating push-button controls all electronic functions. Manual gain is adjusted via a dedicated knob, and the device includes gain memory, allowing it to retain your preferred settings even after powering off. The power button requires a deliberate 1-second press to prevent accidental activation. Additional press sequences control the onboard IR illuminator, toggle auto shutoff functions, and allow for a full factory reset of the electronics if needed.

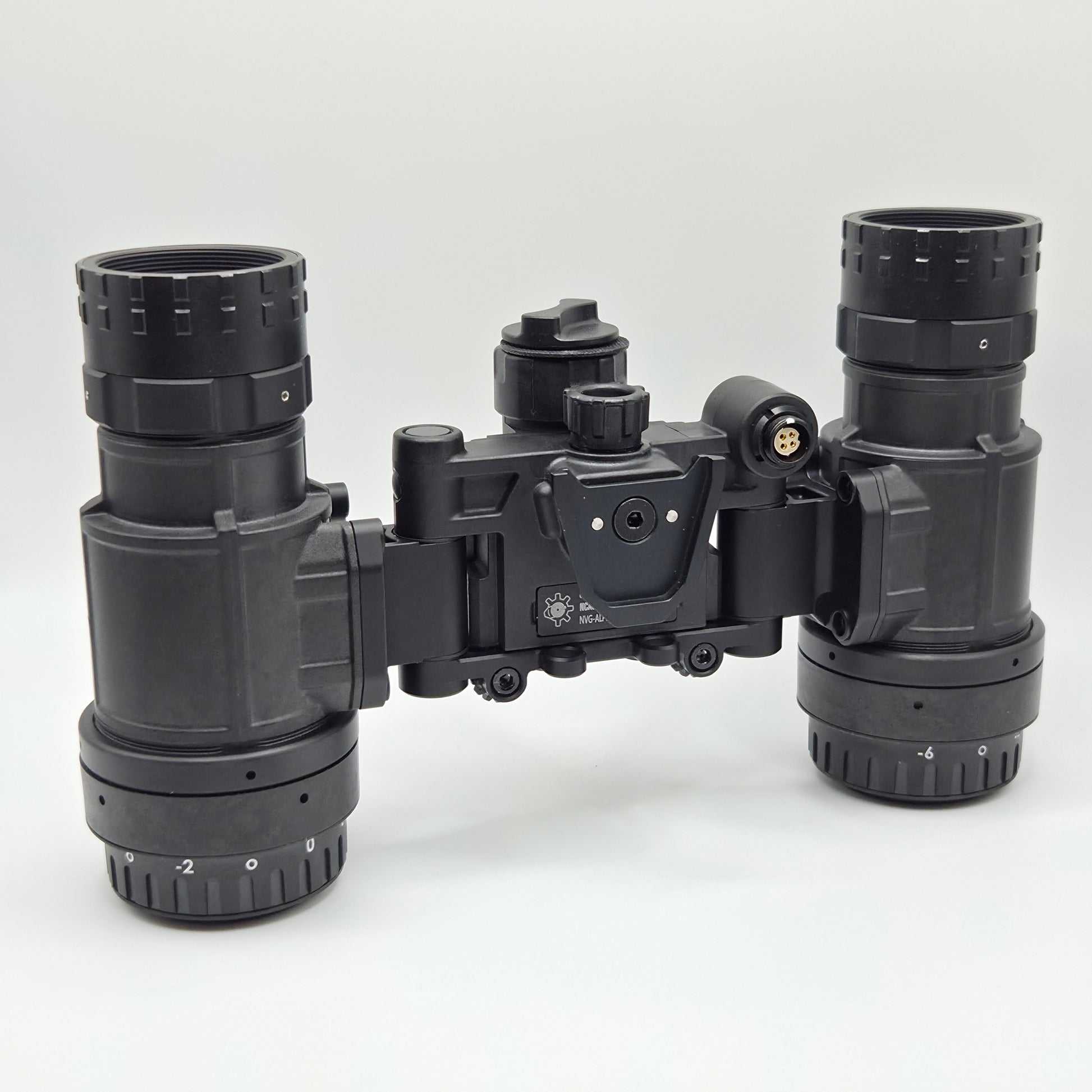

The rear-mounted interpupillary distance stops are intuitive to use—rolling the adjuster outward moves the pod outward, while rolling it inward moves the pod inward—ensuring a customized and comfortable fit.

Key Features:

• Robust aluminum hinge design
• Variable gain
• Gain memory remembers gain settings even when turning device off and on
• Individual pod shutoff when articulated (feature can be toggled ON/OFF)
• Automatic shutoff when flipped past vertical (feature can be toggled ON/OFF)
• 2 minute idle shutoff mitigates damage from devices being left on when not in use (feature can be toggled ON/OFF)

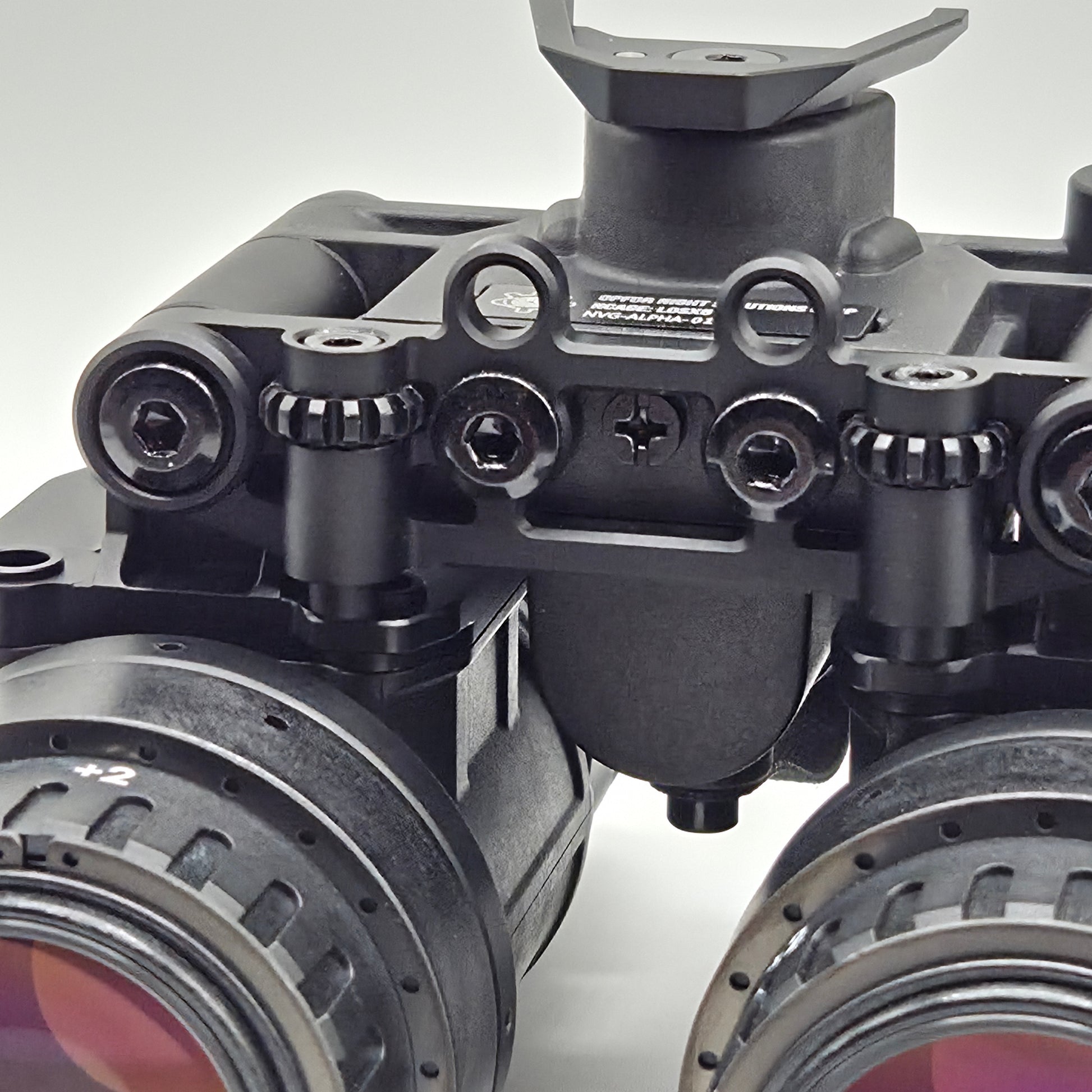

• Intuitive and rugged interpupillary stop design redirects all impact forces inwards into a reinforced aluminum plate

• Powered by single CR123A battery
• Optional remote battery pack with external 4 pin Fischer port

Mount compatibility for remote power: Wilcox G24 Lite, Wilcox G69, Cadex Low Profile Flip Up, Argus A4.

Specifications:

Construction: Polymer and Aluminum
Power: CR123A (~20 hours) or External Fischer
IR Illuminator: On Board
Manual Gain Control: Compatible with EGAC Pigtail, 3 Plate MX10160, 4 Plate MX10160
Weight: 19.7 oz with BrightPath Solutions MIL40 Lenses, 20.9 oz with Noctis/Fujinon Lenses
Shock/Drop Resistance: meets MIL-STD-810G Transit Drop
Water Immersion: meets IP68, 2 Meters for 1 Hour

Housing Components Made in China

Lenses Manufactured in USA or TAA Compliant Countries

Assembly, Final Testing and Quality Control done in Canada
